Motorized zoom cameras

Kurokesu motorized zoom lenses are built for camera systems where zoom, focus, and iris must be controlled in software instead of adjusted by hand. They are intended for embedded imaging, custom optical instruments, and remotely operated cameras that need variable field of view, repeatable framing, and tighter system integration than a standard manual lens setup. The newer lens platform also moves toward larger image circles and larger sensors than the older motorized zoom camera kits.

Controllers

SCE2 is the current controller platform for motorized zoom lens systems. It provides four stepper channels and g-code-based control in a compact module, while SCF4 represents the earlier compact controller generation used in older motorized zoom products. SCG1 extends the same idea further for more advanced multi-axis optical systems.

Camera Integration

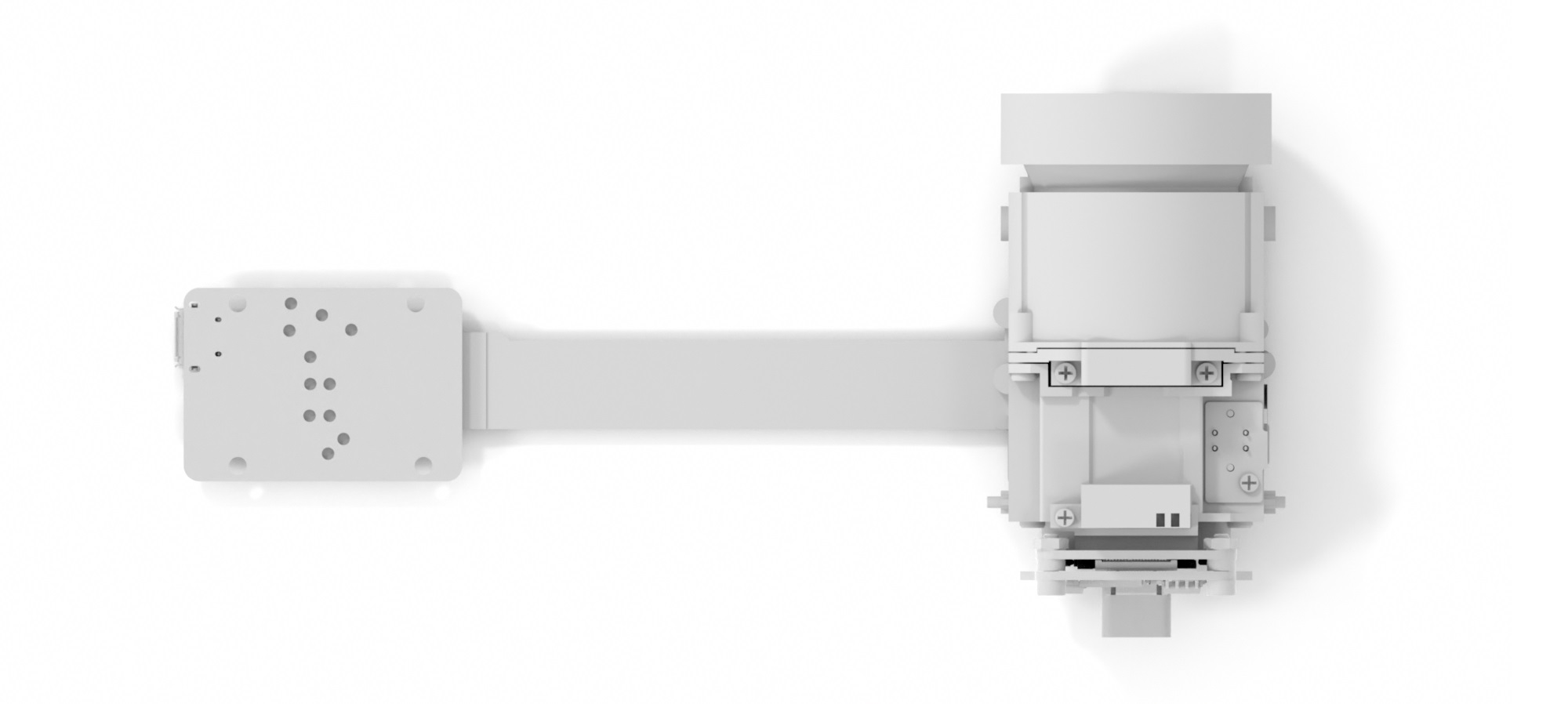

Motorized zoom lenses are matched to selected C3, C2, and MIPI camera modules, with the main selection rule driven by lens image circle and sensor size. In practice, the important question is whether the lens is designed to properly cover the target sensor format, such as 1/2.7-inch or 1/1.8-inch. The direct-mount approach keeps the optical stack compact and efficient, but it also makes the system more specialized than a universal C-mount or CS-mount lens.

Applications

These lenses are well suited to systems that need both wide overview and narrow detail from the same camera. Typical use cases include robotics, surveillance, teleconferencing, machine vision, scientific instruments, and R&D platforms where field of view, focus, and imaging behavior need to be changed remotely and repeatably.

Lens Design

The lenses use micro stepper motors to drive zoom, focus, and often iris through compact internal mechanisms with moving optical groups. Kurokesu documentation describes direct screw-driven zoom and focus structures, with dedicated motion control for lens travel and calibration. This gives fine control over optical behavior while keeping the system compact enough for OEM and embedded designs.

Software-Defined Optics

These lenses are best treated as software-defined optical systems. Homing, parameter tables, zoom-focus curves, presets, autofocus logic, and motion behavior are handled in software, and Kurokesu’s experiment shows that a varifocal lens can be calibrated to behave much closer to a parfocal workflow. The same approach also makes room for custom predictive autofocus, focus tracking, boresight compensation, thermal correction, and even height map from focus style image analysis.

Limitations

These are not true hardware parfocal broadcast lenses, so focus can shift when zoom changes. Positioning relies on homing and reference sensing rather than built-in absolute encoder feedback, and practical system-level effects such as boresight drift or focal-plane mismatch may need calibration. In return, software compensation gives much more freedom to tailor lens behavior to a specific product or workflow.

Open and Modular Design

A key strength of the platform is its open and modular design. SCF4 documentation points to open-sourced sample software with source code on GitHub, while SCE2 documentation and lens demos point to public firmware, SDK, and software repositories. This makes it easier to build custom control tools, integrate optics into larger systems, and adapt the platform to application-specific workflows instead of being locked into a closed vendor stack.

Lens Range

The range spans compact to long-range options. X10 is the compact choice for tighter systems, L085 is a very versatile all-round option, and L084 is the largest lens with the biggest zoom range. For a quick sense of scale, L085 covers roughly 67.9° to 2.8°, while L084 extends from about 73.0° down to 1.9° on the referenced formats.
