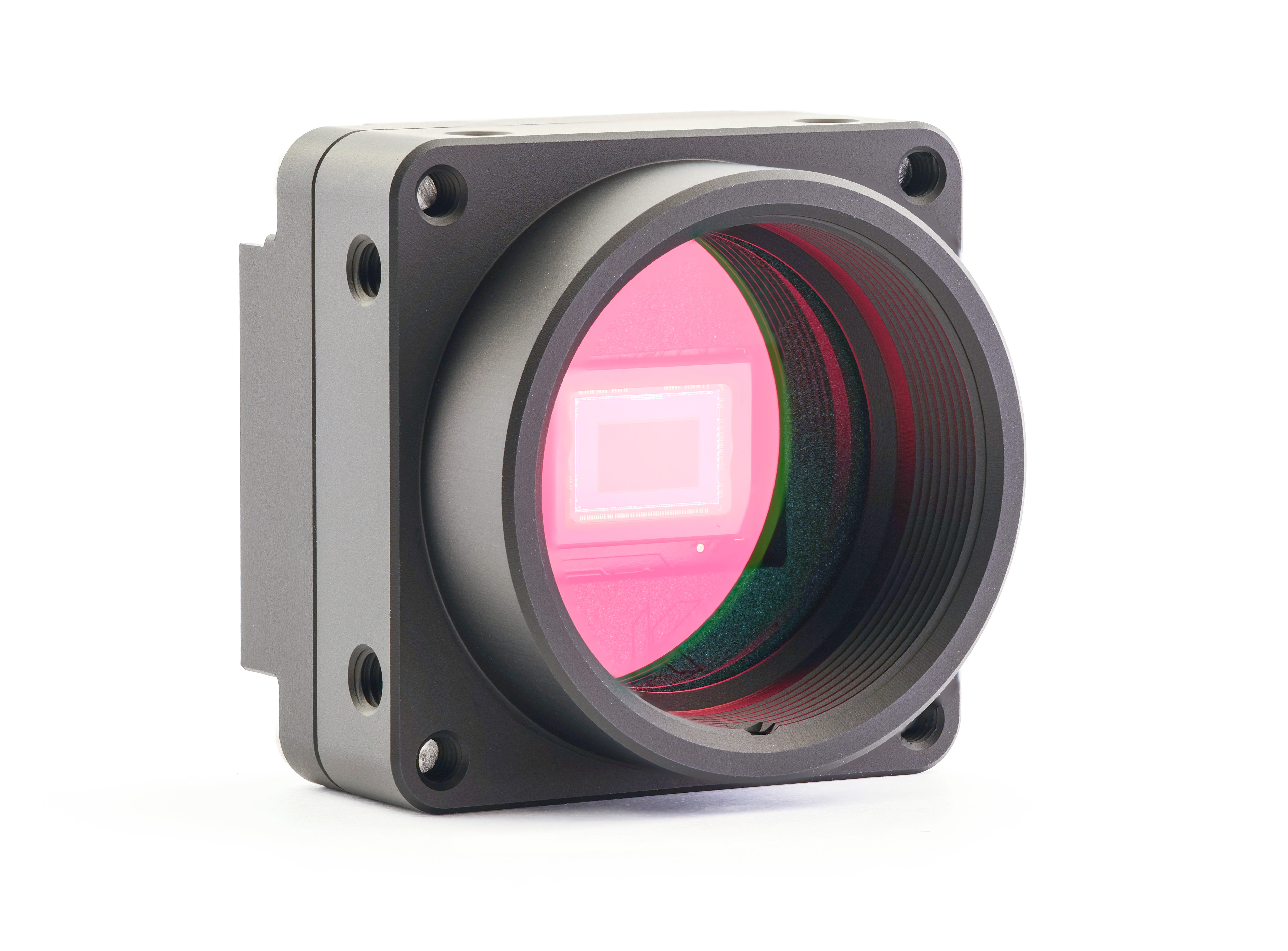

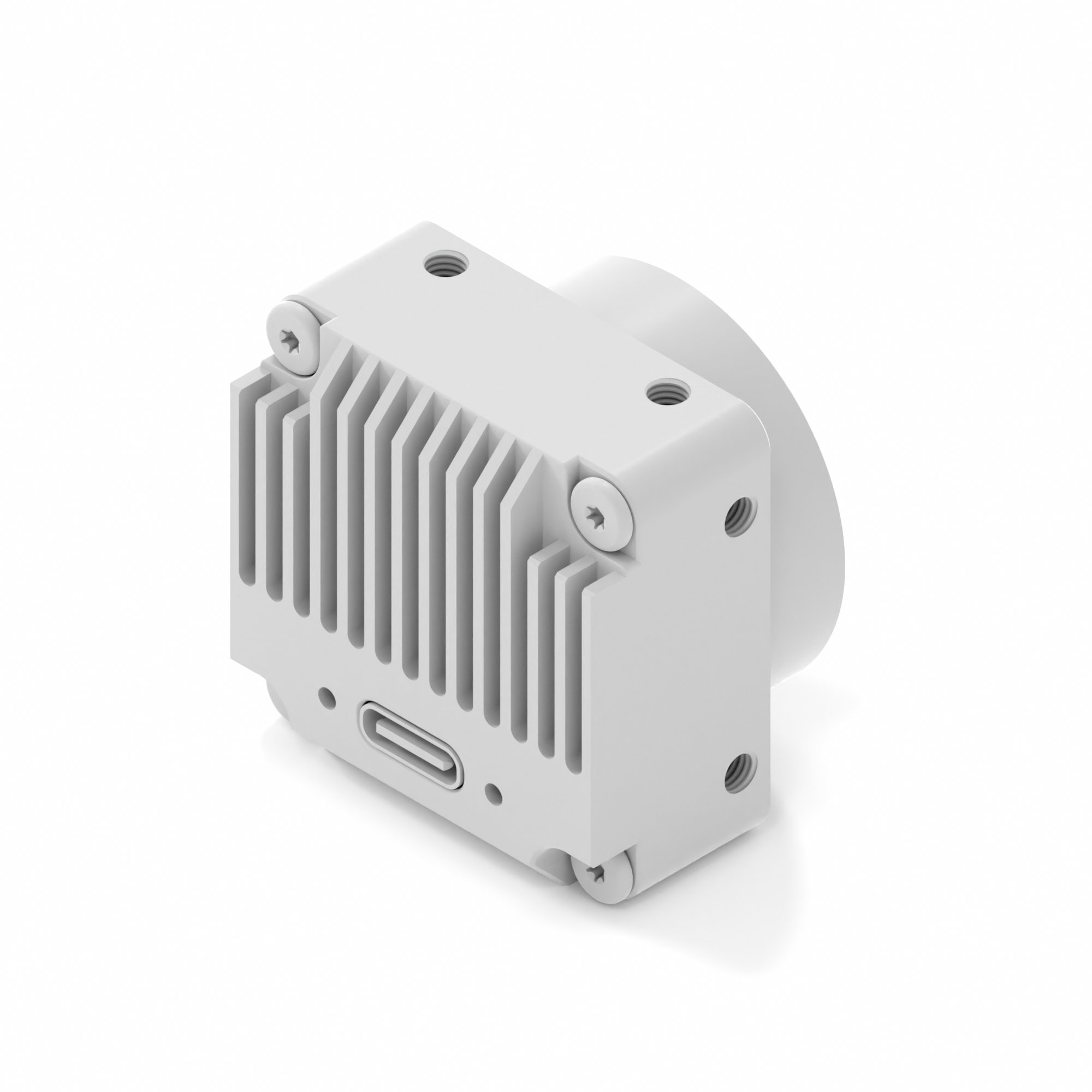

C2 USB camera (CS mount, IRCUT filter, Boxed)
€220.22

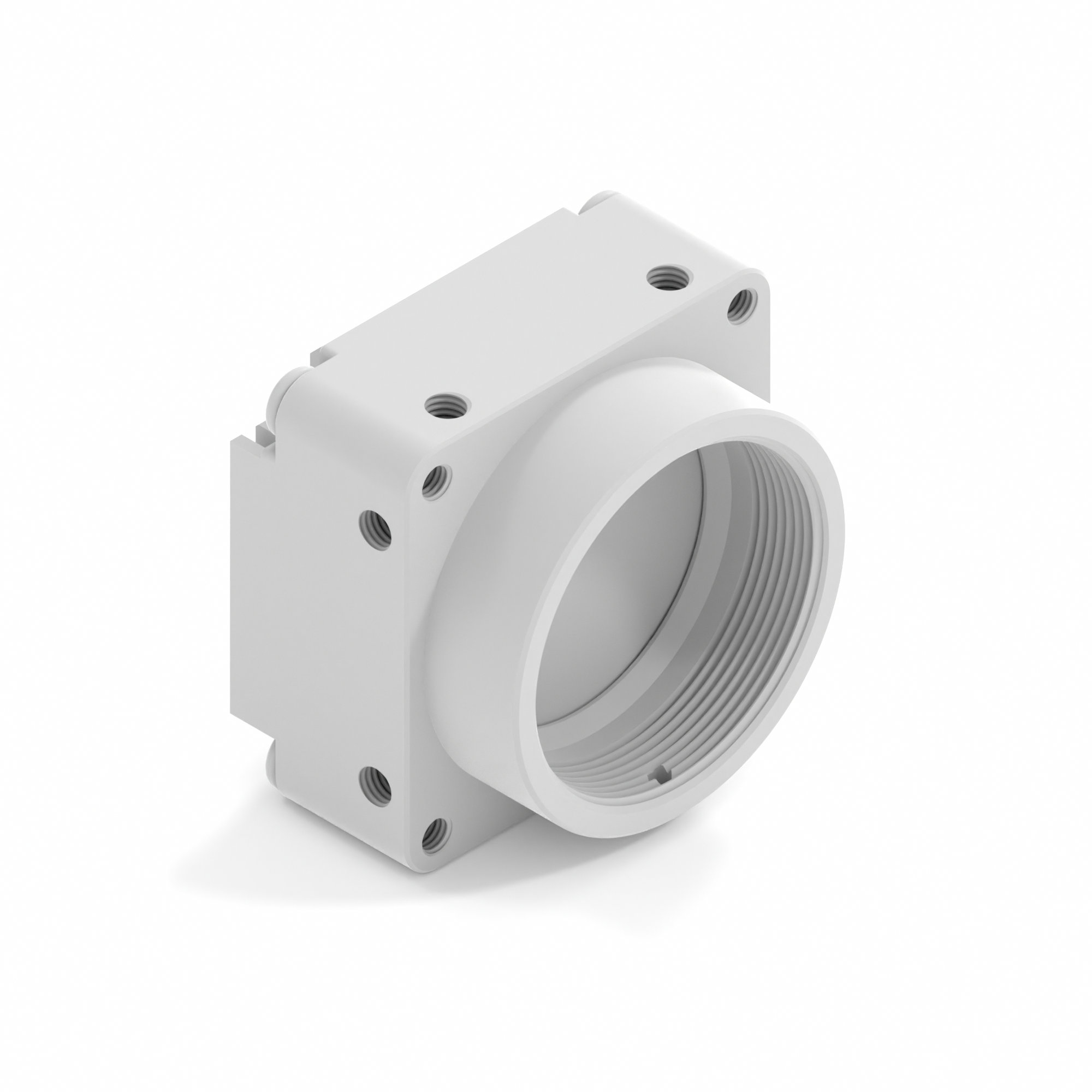

- High quality industrial 6061-T6 black anodized aluminum case
- 1″-32TPI mount for CS lens
- Multiple mounting options (all side walls and top has M3 tapped holes) for machine vision or
robotics - Optional 1/4-20 UNC thread for tripod mounting
- Format: 1/2.8-inch (6.46mm)
- Sensor: Sony IMX290
- YUY2/MJPEG/h.264 compression
- 1920x1080 @ 30fps
- UVC compatible
- Sensor pixel size: 2.9μm x 2.9μm
- Sensor dynamic range: 66db
- SNR max: 40.5db
- Operation temperature range: -45°C...+85°C
- USB 2.0

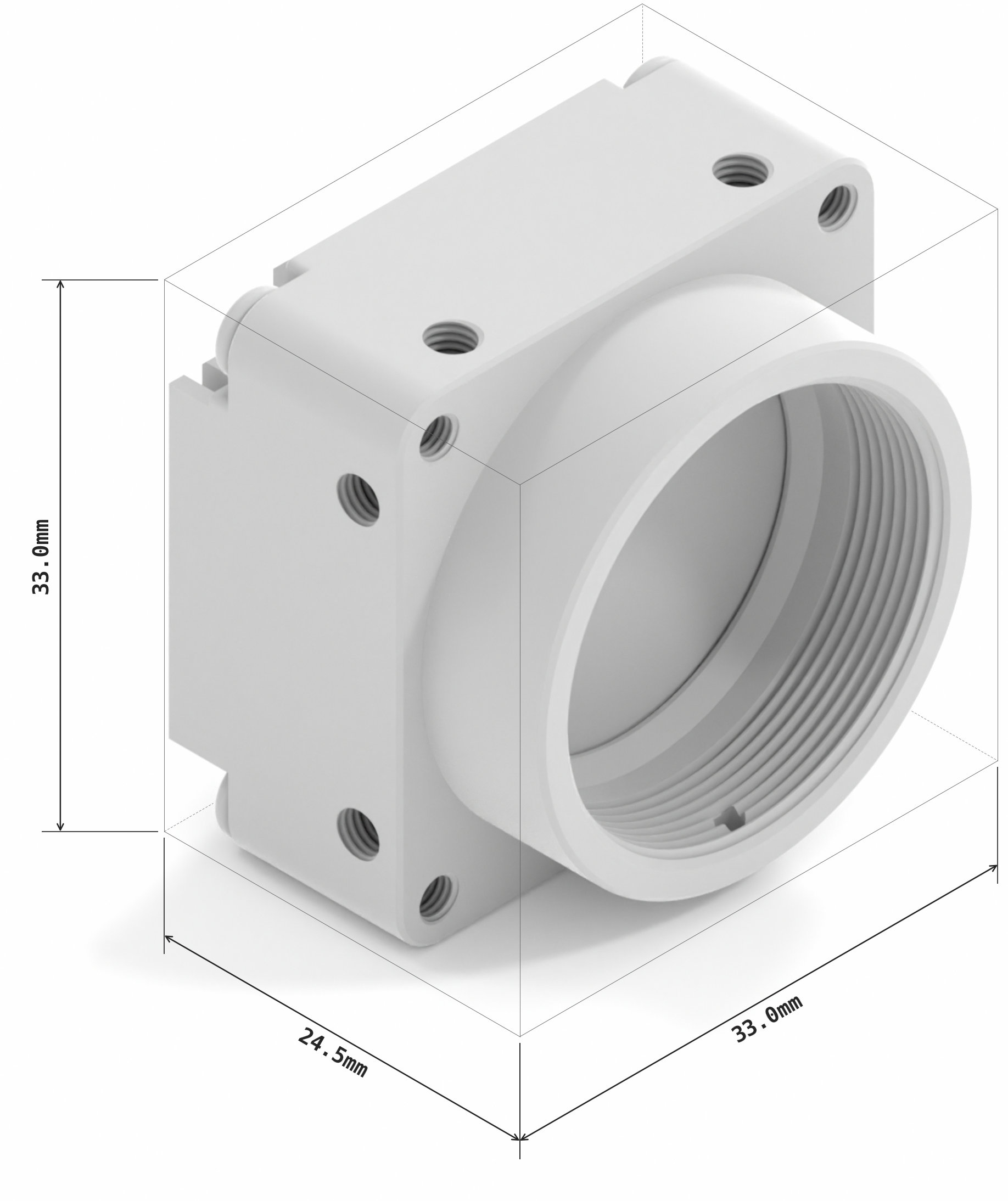

- 3D model can be found at: https://github.com/Kurokesu/3d_models
- Interchangeable filters (Low pass 650nm installed by default)
- Non cropped sensor operation in all resolutions
- Each camera has unique serial number
- RoHS, REACH, CE certified
Documentation
Notes
- Normally camera is built with 380-650nm filter installed. Optionally you can order installed >850nm IR filter or filter can be removed. You can chose this option in drop down menu.
- Online lens view angle calculator
- Lens is not included
| Camera interface: | USB-C 2.0 |
|---|---|
| Camera kind: | Boxed |
| Chroma: | RGB |
| Filter: | IRCUT |
| Image sensor: | IMX290 |
| Lens mount: | CS |
| Sensor size: | 1/2.8" |
| HS CODE: | 8525 89 |
| Shutter: | Rolling shutter |
| Frame rate: | 30 fps |
| Country Of Origin: | Lithuania |
| Resolution: | 2 MP |
| ECCN: | EAR99 |
Accessories
Tripod and Arca-Swiss mount plate kit. This mount plate is designed to make camera more compact and add more mounting options.
USB-C cable with lock screws offers a robust and reliable connection tailored for industrial and machine vision applications. Designed to mate USB Type-A at one end and USB-Type-C at the other, it features M2 lock screws with 15mm spacing to secure the connector firmly in place - ideal in environments subject to vibration or motion. The cable uses a durable outer PVC jacket, and measures approximately 4.2mm in diameter. Cable is dual shielded, 32 AWG (data), and 24 AWG (power), ensuring consistent power and data transmission and low voltage drop. This cable is purpose-built to complement the C2 and C3 camera series providing a secure, high-integrity link between the camera and host system. Whether in factory automation, inspection systems or embedded vision rigs, the lock-screw USB-C cable helps maintain connectivity and performance even under demanding conditions.
